Joystick Radio Remote Control

Designed exclusively for complex applications

Our Joystick remote control unit offers a wide range of customisation options to suit the end users’ needs.


The Joystick radio remote control system is the highest specification unit from the Ultrabeam® Platform designed exclusively for complex applications that demand a large number of functions to be controlled whilst focusing on improving ease of use, efficiency and productivity in industrial machine operations.

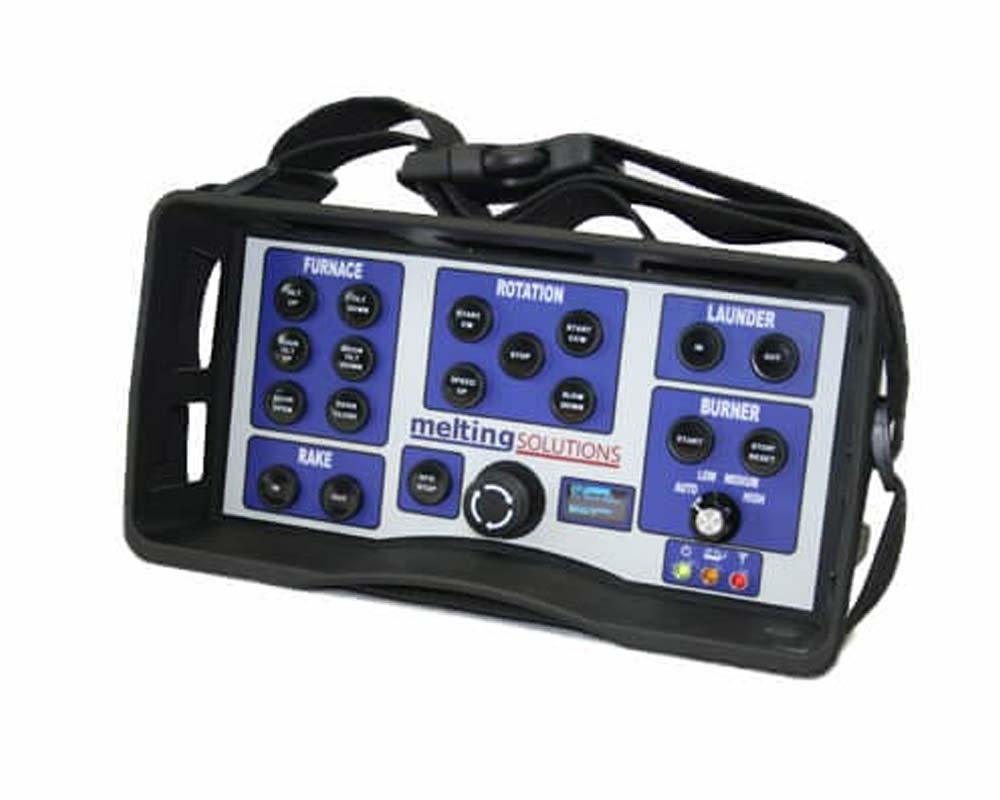

The robust and practical console style unit is suitable for indoor or outdoor applications and allows several manoeuvres to be executed simultaneously – its harness system allows the both hands to be used on different controls. Its two way communications and OLED Display allows constant feedback of important information as well as operational status, radio and battery level so users are always sure of what’s happening.

Our Joystick remote control unit offers a wide range of customisation options to suit the end users’ needs. Everything from the labels, buttons, switches joysticks, paddles, display, communications and software can be tailored to suit the end application.

As well as 2 way radio communications link, it can also be connected using in a wired mode using one of the 3 communications types built into the unit – RS232, RS485 or CAN bus from the same unit.

It is well equipped to be used as the main controller for a bespoke control system or linked into a existing complex PLC based application using radio and/or a communications bus.

When paired to an FSL receiver it can be tailored to the customers’ needs by:

  • Full face label for functions using text and graphics
  • Complete console buttons and controls customisation
  • Company logo
  • Standard receiver unit
  • SRS Special receiver solution

Get a quote

Get A Quote
Sending
  • Technical Specifications
    • Options for Joystick control:  2 axis, 4 axis, Paddle
    • Options for Switch controls:  Momentary buttons, Toggle switches, Rotary Switches
    • Custom label design to display functions and customer logo
    • All-Stop button
    • LED’s for status feedback
    • 433 or 868 MHz Multichannel Radio Options
    • Built in charger to allow operation whilst in use
    • Protection rating: IP65
    • LiPo battery
    • CanBus Communication
    • RS232 Communication
    • RS485 Communication
    • Dimensions: 150 x 285 x 170 mm
    • Weight: 1500g (approx)
  • Radio Specifications
    • 433 MHz multi channel (868/915 options available)
    • Operational range 150m, optional up to 300m, High power option
    • 16 bit serial number
    • 24 bit manufacture code
    • 16 bit CRC error detection
    • AES security option
    • PCB conformal coated
    • 2 way link option
    • Simple pairing mode
    • Internal or External Aerial
  • Customisations
    • Customisable buttons
    • Customisable LEDs
    • Custom label design to display functions & customer logo
    • OLED Display for diagnostics
    • 2 Handed Control
    • Button Combinations
    • Tilt / Accelerometer
    • High Power Radio Option
  • Accessories
    • Belt & neck straps
    • Battery Charger – Cigarette/12v/24v/mains

Receiver Options

Overview

https://www.fslelectronics.com/newsite/wp-content/uploads/2020/10/tgw-12-receiver.jpg Receiver Image

Technical Specification

  • Outputs: 1 x 10A relay, 10 x 5A relays, All stop relays
  • Reception: FM Radio
  • Radio frequency: 433 MHz multi channel (868 / 915 options available)
  • Protection rating: IP65
  • Power supply: 12-28V DC supply
  • Operating & storage temperature: -10oC to +50oC
  • Customisation: OLED display for status, LED’s for status feedback, CanBus, RS232
  • Accessories: External antenna

Overview

https://www.fslelectronics.com/newsite/wp-content/uploads/2020/10/ac-16-receiver.jpg Receiver Image

Technical Specification

  • Outputs: 16 x 10A relays
  • Inputs: 8 x 12/24V DC inputs
  • Reception: FM Radio
  • Radio frequency: 433 MHz multi channel (868 / 915 options available)
  • Protection rating: IP65
  • Power supply: 12/24 VDC, 90-264V AC
  • Operating & storage temperature: -10oC to +50oC
  • Customisation: LED’s for status feedback
  • Accessories: Mains switch mode PSU, External antenna

Overview

https://www.fslelectronics.com/newsite/wp-content/uploads/2020/10/dc-26-receiver.jpg Receiver Image

Technical Specification

  • Outputs: 16 x 6A relays, 8 x 10A relays
  • Inputs: 8 x 12/24V DC inputs
  • Reception: FM Radio
  • Radio frequency: 433 MHz multi channel (868 / 915 options available)
  • Protection rating: IP65
  • Power supply: 12/24V DC
  • Operating & storage temperature: -10oC to +50oC
  • Customisation: OLED display for status, LED’s for status feedback
  • Accessories: External antenna

Product Applications

Warehousing

FSL supply warehouse automation and control solutions to leading providers for mobile racking, robotics, order picking, storage & retrieval, access control – all designed to improve productivity and efficiency within warehouse facilities.

Maritime

Rugged remote control solutions for the harsh conditions of the Maritime environment. Each system can be designed and built to withstand temperature sways, rain & snow & to operate flawlessly without fail.

Agriculture

Leading edge remote control technology creating a safer & productive forestry and agricultural working environments. FSL have designed and manufactured systems for a range of machinery including grapplers, chippers, skidders, mulchers and more.

Material Lifting

Safer, smarter and efficient wireless remote controls offer the most robust solutions with all the best features for bulk materials handling machinery such as conveyors, screening, crushing, tipping grids, loaders, stackers and smelting.
